The Spitwater Heating Cylinder can be coupled to most cold water pressure cleaners; both single and three-phase electric, petrol and diesel engine driven. As it requires only 150 watts (0.15 kW) to drive, the Heating Cylinder can easily be made portable by using a small inexpensive generator to drive it.
Spitwater Heating Cylinders have a 37 m horizontally mounted, seamless mild steel coil, the longest in its class. The horizontal mount ensures better ‘thru-burn’ which converts to less sooting, better heating capacity and longer coil life. Spitwater Heating Cylinders will heat water to 95° C, handle pressures up to 250 bar (3650 psi) and flows up to 21 liters per minute.

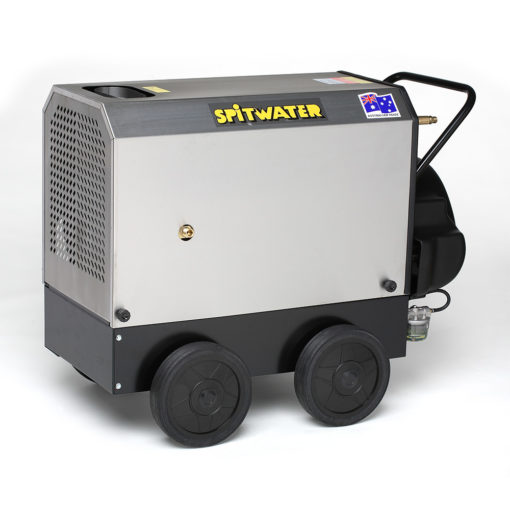

SHW11 Features and Equipment
– All steel construction with Stainless steel cover
-240 Volt -Single phase – 2 AMPS on 10 amp plug
– Four solid wheels
– 2 m high pressure connecting hose
– Inlet pressure filter
– Safety relief valve
– Adjustable thermostat
Heating coil:
– Horizontally mounted through-burn, less sooting
Mild steel seamless pipe:
3/8 inch diameter
47 m long
Diesel burner – electric fired
Proudly Australian made
